FOR SPRING RETURN OR EXTEND CYLINDER
	FOR SPRING RETURN OR EXTEND CYLINDER

WHEN ORDERING PARTS: Please specify
Model No. of Cylinder, bore size, stroke, part number,
description and the quality required.
                                                                                                              BORE SIZES

		3/4"	1"	1/8"

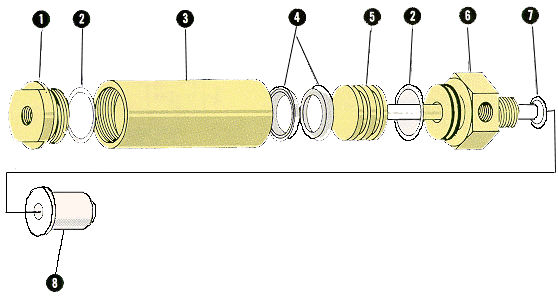

ITEM NO.	DESCRIPTION	PART NO.	PART NO.	PART NO.
1	Standard Cap End	A07601	A10601	A11601
2	Tube Seal (2 required)	A07500	A10500	A11500
3	Tube (specify stroke)	A07400	A10400	A11400
4	Piston Seals (2 required)	A07200	A10200	A11200
5	Piston & Rod Assembly	Specify Rod Diameter, Thread & Stroke & Model Number of Cylinder
	Plain End
	Threade End
	Double Rod Plain End
	Double Rod Threaded End
	Hex Rod Plain End
	Hex Rod Threaded End
6	Standard Head	A07600	A10600	A11600
7	Rod Seal IF OTHER THAN STANDARD ROD SIZE, PLEASE SPECIFY	A07600	A10600	A11600
8	Spring Stop (specify stroke, Spring Extend or Spring Return)	A07800	A10800	A11800

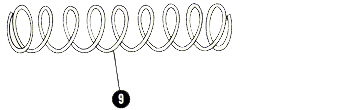

9	Spring (specify stroke, Spring Extend or Spring Return)	A07700	A10700	A11700
10	Head Trunnion	A07607	A10607	A11607
11	Clevis End	A07604	A10604	A11604
12	Threaded End Cap-Side Port	A07602	A10602	A11602
13	Threaded End Cap-Rear Port	A07603	A10603	A11603
14	Threaded End Cap-Rear Port	A07605	A10605	A11605

NOTE: COMPLETE SEAL KIT AVAILABLE WITH ALL ESSENTIAL SEALS
SPECIFY MODEL NUMBER OF CYLINDER
